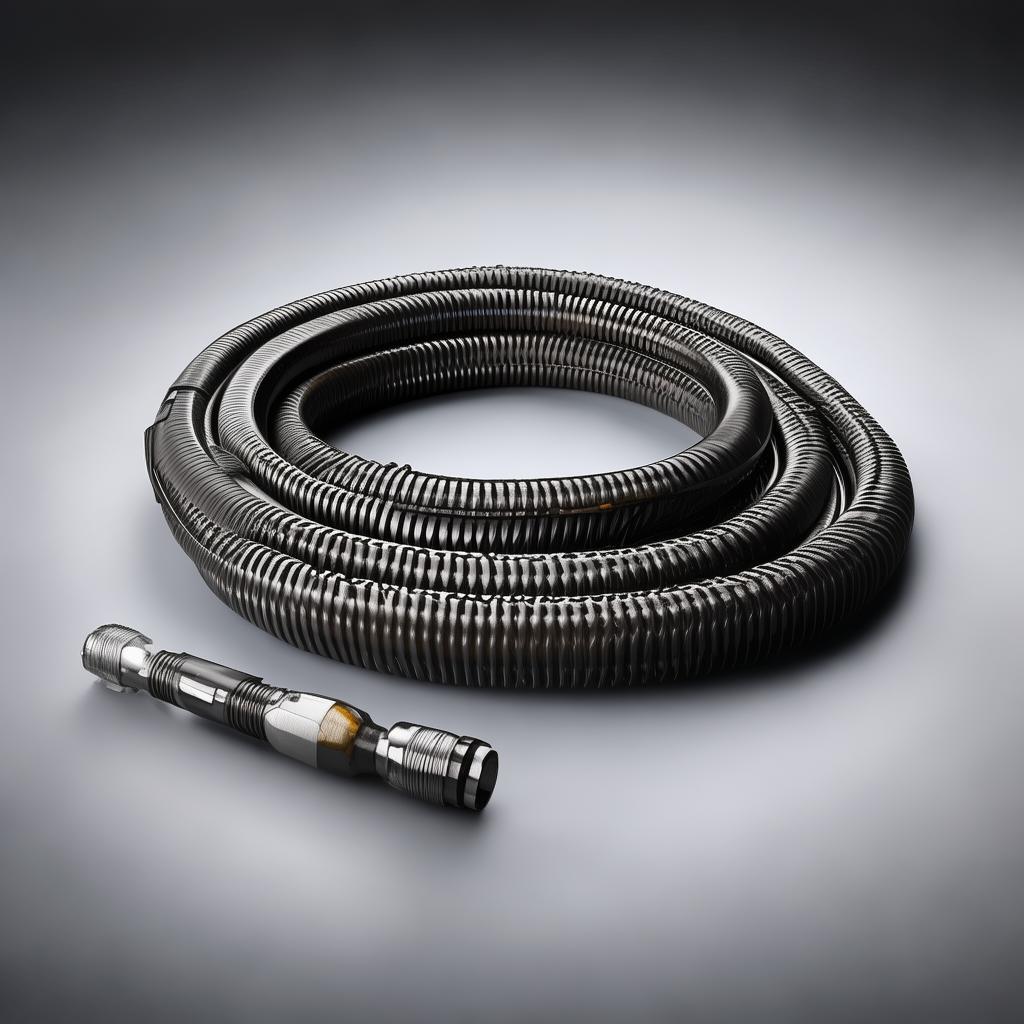

Professional-Grade Repairing Rubber Hose for Industrial Maintenance
1. Product Overview
In demanding industrial environments, a damaged hose can halt production within minutes. Our repairing rubber hose system is engineered to provide a permanent, high-pressure solution for punctures, abrasions, and coupling failures. Unlike temporary patches that fail under stress, this repair hose integrates seamlessly with existing systems, restoring full operational integrity to pneumatic, hydraulic, and material transfer lines. Designed for rapid deployment without specialized tools, it reduces downtime while maintaining the flexibility and durability required for continuous industrial use.
2. Key Features
- High-Pressure Resilience: Withstands up to 300 PSI (20 bar) working pressure, suitable for heavy-duty hydraulic and pneumatic applications.
- Multi-Layer Reinforcement: Features a synthetic rubber core, high-tensile textile braid, and an abrasion-resistant outer cover for extended service life.
- Universal Compatibility: Works with rubber, PVC, and polyurethane hoses; compatible with standard camlock, NPT, and BSP fittings.
- Cold-Flex Technology: Remains pliable down to -40°F (-40°C) without cracking, ideal for outdoor or refrigerated environments.
- Chemical Resistance: Oil, fuel, and solvent resistant inner tube prevents swelling or degradation from industrial fluids.
- Quick-Repair Design: Pre-cut lengths with pre-applied adhesive backing allow for installation in under 5 minutes without vulcanizing equipment.
3. Technical Specifications
| Parameter | Standard Grade | Heavy Duty Grade |
|---|---|---|
| Inner Diameter Range | 1/4" - 2" (6mm - 50mm) | 1/2" - 4" (12mm - 100mm) |
| Working Pressure (Max) | 150 PSI (10 bar) | 300 PSI (20 bar) |
| Burst Pressure | 600 PSI (40 bar) | 1,200 PSI (80 bar) |
| Temperature Range | -20°F to 180°F (-29°C to 82°C) | -40°F to 250°F (-40°C to 121°C) |
| Cover Material | EPDM Synthetic Rubber | Neoprene/CR Blend |
| Reinforcement | Single Textile Braid | Dual Textile Braid + Wire Helix |
| Bend Radius (Min) | 4x ID | 6x ID |
| Length per Roll | 50 ft (15m) or 100 ft (30m) | 25 ft (7.6m) or 50 ft (15m) |
4. Application Scenarios
- Mining & Quarrying: Rapid repair of slurry, water, and air lines in abrasive environments where full hose replacement is logistically challenging.
- Oil & Gas Refineries: Emergency patching of fuel transfer hoses and hydraulic control lines on drilling rigs and processing units.
- Food & Beverage Processing: FDA-compliant grade available for repairing washdown hoses and ingredient transfer lines without contamination risk.
- Marine & Shipbuilding: Corrosion-resistant repair for bilge pump hoses, fire suppression lines, and deck wash systems exposed to saltwater.
- Construction: On-site repair of concrete pump hoses, air tool lines, and dust collection ducts at job sites without workshop access.
- Agricultural Irrigation: Quick restoration of pivot irrigation hoses and chemical injection lines during critical growing seasons.
5. Advantages
- Cost Savings: Reduces replacement costs by up to 70% compared to full hose assembly replacement; only the damaged section is repaired.
- Zero Downtime Installation: No vulcanizing, heat curing, or special tools required. Standard workers can complete repairs without specialized training.
- Extended System Life: Creates a permanent bond that outlasts the original hose material in many cases, preventing secondary failures at repair points.
- Inventory Simplification: One roll of repairing rubber hose can service multiple hose diameters and types, reducing spare parts stock complexity.
- Environmental Compliance: Reduces waste from discarded hoses; the repair sleeve is fully recyclable in industrial rubber recycling streams.
6. Why Choose Us
We have supplied repairing rubber hose solutions to over 1,200 industrial facilities across 45 countries since 2008. Our manufacturing facility holds ISO 9001:2015 certification, and every batch is tested for burst pressure, adhesion strength, and temperature cycling before shipment. Unlike generic repair sleeves, our product undergoes third-party validation by TÜV Rheinland for safety-critical applications. We offer:
- Custom Lengths: Pre-cut kits available in 3ft, 5ft, and 10ft segments for field deployment.
- OEM Compatibility: We can match Shore A hardness, color, and texture to your existing hose brand.
- Global Logistics: DDP shipping to 50+ countries with 3-5 day express delivery available.
- Technical Support: 24/7 engineering assistance for installation guidance or custom application testing.
7. FAQ
Q: Can this repairing rubber hose be used on hydraulic hoses carrying mineral oil at 200°F?
A: Yes, our Heavy Duty Grade is specifically formulated for high-temperature hydraulic oil applications. It has been tested for 1,000 hours at 200°F (93°C) with ISO VG 46 hydraulic oil without measurable degradation. Ensure the damaged area is thoroughly degreased before application.
Q: How long does the repair last compared to a new hose?
A: In controlled lab tests, properly applied repairs exceed 5,000 hours of continuous operation at rated pressure. Field data from mining operations shows average service life of 18-24 months, which often exceeds the remaining life of the original hose section.
Q: What surface preparation is required before installation?
A: The damaged area must be clean, dry, and free of oil, grease, or loose debris. We recommend wiping with isopropyl alcohol (70% or higher) and allowing 60 seconds to evaporate. For porous or weathered rubber, light sanding with 80-grit paper improves adhesion by 40%.
Q: Does this product work on braided PTFE or Teflon hoses?
A: No. Our repairing rubber hose is designed for elastomeric hoses (rubber, PVC, polyurethane). For PTFE hoses, we recommend our specialized PTFE repair sleeve (sold separately) which uses a different adhesive chemistry.
Q: Can I use this on hoses carrying drinking water?
A: Our Standard Grade uses FDA-compliant EPDM rubber that meets NSF/ANSI 61 and 372 standards for potable water. However, we recommend our dedicated "Food Grade" variant which includes a white inner liner for visual contamination inspection.
Q: What is the shelf life of unopened rolls?
A: When stored in a cool, dry environment (below 90°F / 32°C, away from direct UV), the product maintains full performance for 5 years from the manufacturing date. Each roll is stamped with an expiration date on the core label.
For pricing, technical data sheets, or free samples, contact our industrial sales team. All orders over $500 qualify for free global shipping and a 30-day performance guarantee.
