High-Performance Hydraulic Hose 1/4 Inch for Demanding Industrial Applications
In high-pressure fluid power systems, reliability is non-negotiable. Our hydraulic hose 1/4 inch is engineered to deliver exceptional performance, durability, and safety in the most challenging environments. Designed for B2B and OEM clients, this hose assembly meets rigorous international standards, ensuring seamless integration and long-term operational efficiency for your machinery and equipment.
1. Product Overview
This 1/4 inch hydraulic hose is a critical component for medium to high-pressure hydraulic systems. Constructed with a robust multi-layer design, it is built to withstand extreme pressures, temperature fluctuations, and exposure to various hydraulic fluids, oils, and fuels. Ideal for construction, agriculture, manufacturing, and material handling sectors, this hose provides a dependable conduit for hydraulic power, minimizing downtime and maintenance costs. Its flexibility and strength make it a versatile solution for a wide range of industrial applications where precision and reliability are paramount.
2. Key Features
- Superior Pressure Rating: Engineered to handle high working pressures with a substantial safety factor, ensuring safe operation under peak load conditions.
- Exceptional Flexibility: Designed for easy routing in tight spaces without kinking, reducing stress on connections and improving system layout.
- Abrasion & Weather Resistance: Features a durable synthetic rubber cover that protects against abrasion, ozone, weathering, and many chemicals.
- Compatibility: Compatible with a broad spectrum of hydraulic fluids, including petroleum-based oils, synthetic fluids, water-glycol, and lubricating oils.
- Reusable & Permanent Fittings: Available with a variety of end fittings (JIC, NPT, BSP) in both reusable and crimped permanent styles for flexible assembly solutions.
- Temperature Resilience: Maintains performance across a wide operating temperature range, from sub-zero cold to high-heat environments.
3. Technical Specifications
| Parameter | Specification | Standard / Test Method |
|---|---|---|
| Hose I.D. (Inner Diameter) | 1/4 inch (6.3 mm) | SAE J517 |
| Working Pressure | Up to 5,000 PSI | SAE J343 |
| Burst Pressure | Minimum 20,000 PSI | SAE J343 |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) | SAE J343 |
| Tube Material | Oil-resistant Synthetic Rubber | - |
| Reinforcement | High-tensile Steel Wire Braid (1 or 2 layers) | SAE 100R1AT / 100R2AT |
| Cover Material | Abrasion & Weather-resistant Rubber | - |
| Standard Lengths | Custom cut to length, standard coils available | - |
4. Application Scenarios
The versatility of our hydraulic hose 1/4 inch makes it suitable for numerous critical applications across industries:
- Mobile Hydraulics: Hydraulic lines on excavators, loaders, forklifts, and agricultural tractors for steering, lifting, and implement control.
- Industrial Machinery: Powering presses, injection molding machines, machine tools, and conveyor systems within manufacturing plants.
- Construction Equipment: Connecting pumps, valves, and cylinders on compactors, cranes, and demolition equipment.
- Transportation: Used in trucking (dump trucks, refuse vehicles) and marine applications for auxiliary hydraulic functions.
- Energy & Forestry: Reliable fluid transfer in logging equipment, mining machinery, and other heavy-duty off-road applications.
5. Advantages
Choosing our hydraulic hose assembly translates into direct benefits for your operations:
- Enhanced System Reliability: Reduces the risk of unexpected failures, leaks, and costly downtime.
- Long Service Life: High-quality materials and construction resist wear, extending replacement intervals and lowering total cost of ownership.
- Improved Safety: High burst pressure ratings and secure fittings minimize hazards associated with hydraulic system failures.
- Optimized Performance: Maintains consistent flow and pressure, ensuring your equipment operates at peak efficiency.
- Global Compliance: Manufactured to meet SAE, EN, and other international standards, facilitating global trade and equipment compatibility.
6. Why Choose Us
As your strategic partner in hydraulic solutions, we offer more than just a product:
- Expert Manufacturing: Decades of specialization in high-pressure hydraulic hose production with stringent quality control at every stage.
- Customization & Support: We provide custom hose assembly services, expert technical support, and guidance to select the perfect 1/4 inch hydraulic hose configuration for your needs.
- Global Supply Chain: Reliable logistics and inventory management ensure timely delivery to meet your production schedules and MRO requirements.
- Quality Assurance: Every batch is rigorously tested. Certifications and test reports are available to guarantee product integrity.
- B2B Focus: We understand industrial needs, offering competitive pricing, volume discounts, and dedicated account management for wholesale and OEM clients.
7. FAQ
Q1: What is the difference between SAE 100R1AT and 100R2AT for a 1/4 inch hose?
A: SAE 100R1AT denotes a hose with a single wire braid reinforcement, typically for medium-pressure applications. SAE 100R2AT indicates a two-wire braid construction, offering a higher working pressure rating for more demanding, high-pressure systems. The correct choice depends on your system's maximum operating pressure.
Q2: Can this hose be used with both petroleum-based and bio-degradable hydraulic fluids?
A: Yes, our standard hydraulic hose 1/4 inch is compatible with most standard petroleum-based oils and common synthetic fluids like water-glycol. For specific bio-degradable fluids (e.g., ester-based), please consult our technical team to confirm compatibility.
Q3: Do you offer pre-made assemblies or bulk hose?

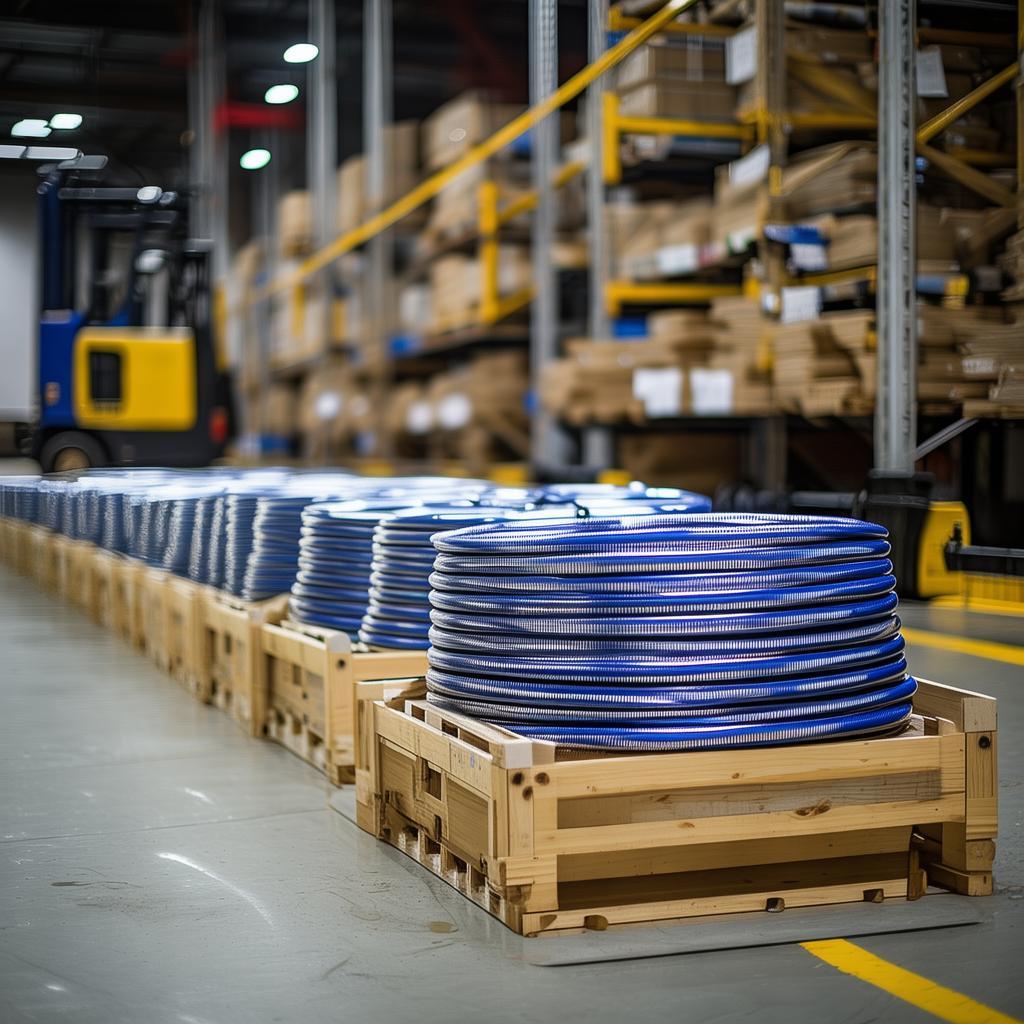

A: We provide both solutions. We can supply bulk hose on reels for your in-house assembly, or we can deliver custom, ready-to-install hose assemblies crimped to your exact length and fitting specifications, saving you time and labor.
Q4: What is the minimum bend radius for this hose?
A: The minimum bend radius is crucial for hose life. For a 1/4 inch hydraulic hose, the minimum bend radius is typically around 2 to 2.5 inches (50-65 mm). Exceeding this can damage the reinforcement and lead to premature failure. Exact specifications are provided on our datasheets.
Q5: How do I place an order for a custom length with specific fittings?
A: Simply contact our sales team with your requirements: hose type (e.g., SAE 100R2AT), inner diameter (1/4"), desired length, and the type and thread of end fittings (e.g., JIC 37° flare, 9/16-18 thread). We will provide a quotation and lead time promptly.
