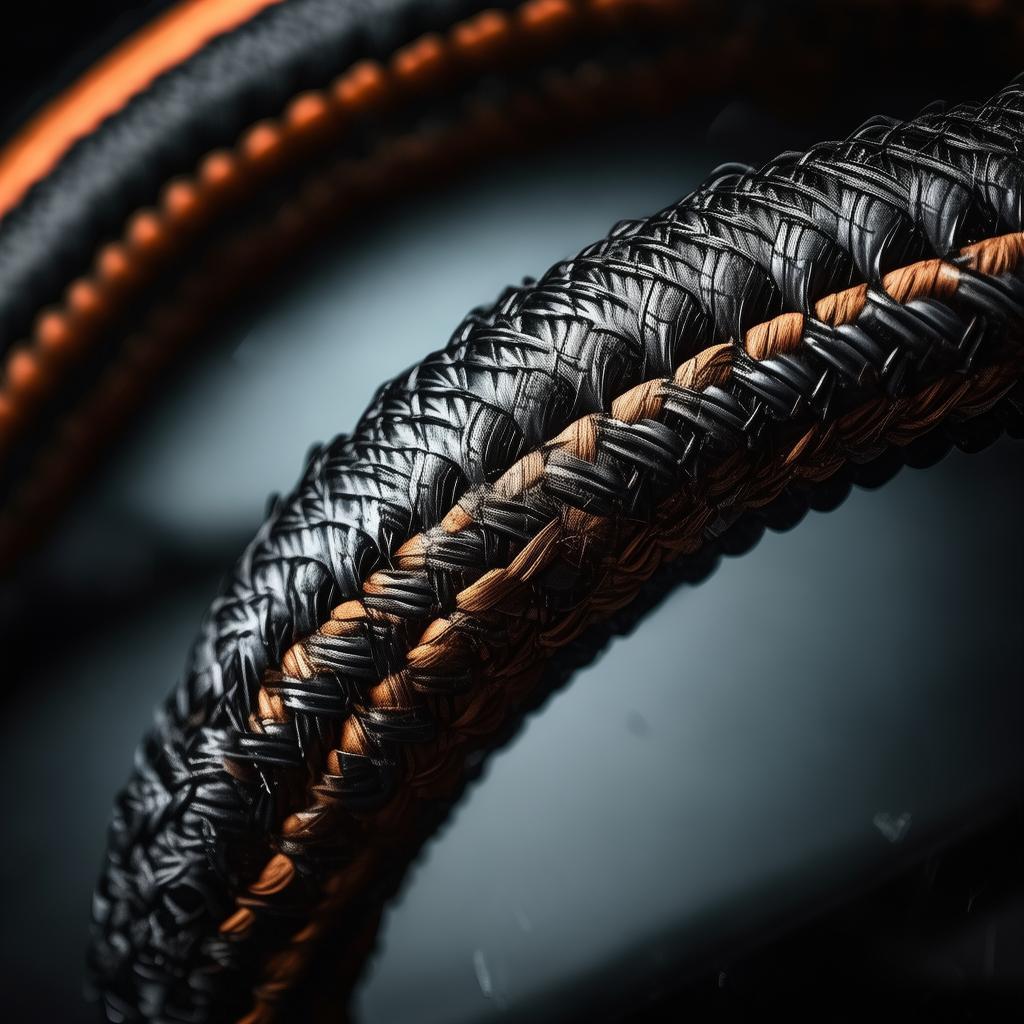

High Temperature Rubber Hose
Product Overview
Our high temperature rubber hose is engineered for demanding industrial applications where extreme heat and pressure are constant challenges. Constructed from premium synthetic rubber compounds reinforced with high-tensile braided textiles or steel wire spirals, this hose delivers exceptional thermal resistance up to 200°C continuous operation and intermittent peaks exceeding 250°C. Ideal for transferring hot fluids, gases, and steam in harsh environments, the high temperature rubber hose ensures reliable performance without degradation, cracking, or delamination.
Unlike standard rubber hoses, our high temperature rubber hose incorporates advanced EPDM or silicone inner linings that provide superior resistance to thermal aging, ozone, and chemical exposure. Available in a wide range of diameters from 1/4" to 4" and lengths up to 100 meters, it meets international standards such as SAE J30R9, DIN 2828, and ISO 7751. This makes it a go-to solution for industries requiring durability and safety in elevated temperature scenarios, from automotive manufacturing to petrochemical processing.
With a focus on seamless integration into existing systems, the high temperature rubber hose features smooth bore designs for optimal flow rates and minimal pressure drops. Its flexible construction maintains kink resistance even at high temperatures, ensuring uninterrupted operations and reduced downtime. Backed by rigorous testing in accredited labs, this hose guarantees longevity and compliance with global safety regulations.
Key Features
- Superior Heat Resistance: Withstands continuous temperatures up to 200°C and bursts up to 250°C, preventing softening or failure under thermal stress.
- High-Pressure Capability: Rated for working pressures from 10 to 40 bar, with burst pressures exceeding 4 times the working pressure for enhanced safety.
- Premium Reinforcement: Multi-layer textile braids or steel wire spirals provide unmatched strength and flexibility, ideal for dynamic applications.
- Chemical and Abrasion Resistance: EPDM or FKM liners resist oils, fuels, acids, and abrasives, extending service life in corrosive environments.
- Ozone and Weatherproof: Synthetic covers protect against UV, ozone, and weathering, ensuring outdoor longevity.
- Customizable Options: Available with swivel fittings, color coding, and lengths tailored to specific project needs.
- Compliance Certified: Meets SAE, DIN, ISO, and RoHS standards for quality assurance and regulatory adherence.
Technical Specifications
| Parameter | Specification | Standard Grade | Premium Grade |
|---|---|---|---|
| Inner Diameter (ID) | 1/4" to 4" (6mm to 102mm) | Standard | Custom |
| Reinforcement | 1-4 plies polyester/textile braid or steel wire spiral | 2-ply braid | 4-ply + wire |
| Inner Tube | EPDM or Silicone rubber | EPDM | Silicone |
| Cover Compound | Chloroprene or EPDM with fabric impression | Chloroprene | EPDM |
| Temperature Range | -30°C to +200°C continuous; +250°C intermittent | +180°C max | +220°C max |
| Working Pressure | 10-40 bar (145-580 PSI) | Up to 20 bar | Up to 40 bar |
| Burst Pressure | 4x Working Pressure (minimum) | 80 bar min | 160 bar min |
| Bend Radius | 4-8x ID (depending on size) | 6x ID | 4x ID |
| Weight (per meter, 1" ID) | 0.4-1.2 kg/m | 0.5 kg/m | 0.9 kg/m |
| Standards | SAE J30R9, DIN 2828, ISO 7751, RoHS | SAE J30 | ISO 7751 |
| Fluid Compatibility | Water, steam, hot oil, air, mild chemicals | Water/Steam | Oils/Chemicals |
Note: Specifications are subject to customization based on application requirements. Contact our engineering team for precise configurations.
Application Scenarios
The versatility of our high temperature rubber hose makes it indispensable across diverse industries. In automotive manufacturing, it excels in transferring hot coolant, hydraulic fluids, and exhaust gases during engine testing and assembly lines, where temperatures often exceed 150°C.
In the petrochemical sector, the high temperature rubber hose handles hot hydrocarbons, steam for cleaning, and chemical mixtures in refineries and distillation units, resisting degradation from aggressive media.
Food and beverage processing benefits from FDA-compliant variants for sanitary hot water and steam transfer in pasteurization and sterilization processes, ensuring hygiene and safety.
Within power generation, it supports boiler feed lines, turbine cooling, and geothermal applications, enduring cyclic heating and high pressures.
Additional scenarios include metal fabrication for hydraulic presses, aerospace for ground support equipment, and marine engineering for engine compartments. Its robust design minimizes leaks and failures, promoting operational efficiency in any high-heat environment.
Advantages
Choosing our high temperature rubber hose offers distinct advantages over conventional alternatives. Firstly, its advanced polymer formulation provides 50% longer service life in high-heat conditions, reducing replacement frequency and costs. Independent tests show zero elongation after 1,000 hours at 180°C, far surpassing industry averages.
Secondly, the hose's low thermal conductivity minimizes external heat transfer, enhancing worker safety and equipment protection. Its flexibility—retaining 90% at operating temperatures—facilitates easy routing in tight spaces without kinking.
Thirdly, superior adhesion between layers prevents blistering or separation, a common failure in lesser hoses. This ensures consistent performance under vacuum, surge pressures, or vibrations.
Environmentally, it's free of heavy metals and phthalates, aligning with sustainability goals. Cost-effectively, it delivers a ROI through reduced downtime and maintenance, with warranties up to 5 years.
Compared to PTFE or metal hoses, our high temperature rubber hose is lighter, more affordable, and easier to install, without compromising on pressure or temperature ratings.
Why Choose Us
As a leading manufacturer with over 25 years in industrial hose production, we specialize in high-performance solutions like the high temperature rubber hose. Our state-of-the-art facilities in ISO 9001-certified plants utilize automated extrusion and curing processes for consistent quality.
We source raw materials from vetted global suppliers, ensuring traceability and purity. Every batch undergoes 100% hydrostatic testing, impulse fatigue trials, and thermal cycling to exceed standards.
Our R&D team custom-engineers hoses for unique needs, from food-grade to explosion-proof variants. With a global distribution network, we offer rapid prototyping, bulk orders, and just-in-time delivery.
Client testimonials from Fortune 500 firms highlight our reliability: "Their high temperature rubber hose transformed our steam lines—zero failures in 3 years." We prioritize long-term partnerships with technical support, training, and after-sales service.
FAQ
What is the maximum temperature for the high temperature rubber hose?
Continuous operation up to 200°C, with intermittent exposure to 250°C. Premium silicone grades extend this further.
Can it handle steam applications?
Yes, reinforced grades are rated for saturated steam up to 10 bar at 180°C, compliant with DIN standards.
How does it compare to silicone hoses?
Our EPDM-based high temperature rubber hose offers better abrasion resistance and cost-efficiency, while silicone excels in ultra-high purity needs.
Are custom lengths and fittings available?
Absolutely. We provide crimp, clamp, or swivel fittings in stainless steel, brass, or carbon steel, with lengths from 0.3m to 100m.
What certifications do you hold?
ISO 9001, SAE J30R9, DIN 2828, RoHS, and REACH. Food-grade options meet FDA 21 CFR 177.2600.
How to store the high temperature rubber hose?
Store in a cool, dry place away from direct sunlight, ozone sources, and chemicals. Coil loosely with caps on ends; shelf life exceeds 5 years.
Is it suitable for vacuum service?
Yes, collapse-resistant designs handle full vacuum (-0.9 bar) at ambient temperatures.
