High-Performance EN853 1SN Hydraulic Hose for Industrial Applications
1. Product Overview
Our EN853 1SN hydraulic hose is a premium-grade, single-wire braid reinforced flexible conduit designed for medium-pressure hydraulic systems in demanding industrial environments. Manufactured in strict compliance with the EN 853 Type 1SN international standard, this hose delivers reliable performance for transferring petroleum-based hydraulic fluids, water-glycol mixtures, and lubricating oils. With its robust construction and proven durability, the EN853 1SN series offers an optimal balance of pressure rating, flexibility, and cost-efficiency for B2B operations worldwide.
Each hose features a synthetic rubber inner tube, one high-tensile steel wire braid reinforcement, and a weather-resistant synthetic rubber cover. This design ensures exceptional resistance to abrasion, ozone, and aging, making it suitable for stationary and mobile hydraulic equipment across multiple sectors.
2. Key Features
- Single Wire Braid Construction: One layer of high-tensile steel wire provides superior burst strength while maintaining excellent flexibility for tight bends.
- EN 853 1SN Compliance: Fully certified to international standards, ensuring dimensional consistency and pressure ratings across global supply chains.
- Wide Temperature Range: Operates reliably in temperatures from -40°C to +100°C (-40°F to +212°F), suitable for extreme working conditions.
- Oil & Abrasion Resistance: The synthetic rubber cover resists petroleum-based fluids, UV exposure, and mechanical wear, extending service life in harsh environments.
- High Working Pressure: Rated for up to 250 bar (3,625 psi) depending on diameter, meeting medium-pressure system requirements.
- Minimal Fluid Permeation: Low permeability inner tube reduces fluid loss and maintains system integrity.
- Lightweight & Flexible: Reduced bend radius compared to two-wire braid hoses, simplifying installation in confined spaces.
3. Technical Specifications
| Specification | Value | Standard |
|---|---|---|
| Inner Tube Material | Oil-resistant synthetic rubber (Nitrile) | EN 853 1SN |
| Reinforcement | One high-tensile steel wire braid | EN 853 1SN |
| Cover Material | Weather & ozone-resistant synthetic rubber | EN 853 1SN |
| Temperature Range | -40°C to +100°C (-40°F to +212°F) | ISO 18752 |
| Working Pressure Range | 20 bar – 250 bar (290 – 3,625 psi) | EN 853 1SN |
| Burst Pressure | 4x working pressure (minimum) | EN 853 1SN |
| Bend Radius | Min. 50 mm – 300 mm (depending on ID) | EN 853 1SN |
| Inner Diameter Range | DN 6 – DN 50 (1/4" – 2") | EN 853 1SN |
| Cover Thickness | 1.0 mm – 2.0 mm (nominal) | EN 853 1SN |
| Fluid Compatibility | Mineral oils, water-glycol, lubricants, air | ISO 6743-4 |
| Standards Met | EN 853 1SN, SAE 100 R1AT, ISO 1436-1 | Multiple |
4. Application Scenarios
The EN853 1SN hose is engineered for versatility across multiple industries. Typical applications include:
- Construction Machinery: Excavators, loaders, and backhoe hydraulic circuits for boom, arm, and bucket operations.
- Agricultural Equipment: Tractors, harvesters, and sprayers requiring medium-pressure fluid transfer.
- Material Handling: Forklift tilt cylinders, lift masts, and conveyor systems.
- Industrial Manufacturing: Presses, injection molding machines, and robotics hydraulic lines.
- Mobile Hydraulics: Truck-mounted cranes, dump trucks, and utility vehicles.
- Marine & Offshore: Deck machinery, winches, and hydraulic steering systems (non-subsea).
5. Advantages
- Cost-Effective Performance: Single-wire braid construction offers a lower per-meter cost than two-wire alternatives while meeting most medium-pressure demands.
- Enhanced Flexibility: The EN853 1SN design allows tighter bending without kinking, reducing installation time and space requirements.
- Global Compliance: Certified to EN 853, SAE 100 R1AT, and ISO 1436-1, enabling seamless integration into international OEM and aftermarket systems.
- Long Service Life: Abrasion-resistant cover and oil-resistant tube minimize downtime and replacement frequency.
- Easy Identification: Continuous printed layline with EN853 1SN markings, working pressure, and batch traceability.
- Low Fluid Permeability: Reduces environmental leakage risk and maintains system pressure stability.
6. Why Choose Us
As a specialized manufacturer of hydraulic hose assemblies, we bring decades of expertise to every EN853 1SN product we deliver. Here is what sets us apart:
- Certified Quality Control: Each production batch undergoes impulse testing, burst pressure verification, and dimensional inspection per EN 853 1SN requirements.
- Custom Solutions: We offer cut lengths, pre-assembled fittings, and bespoke hose assemblies for OEM integration.

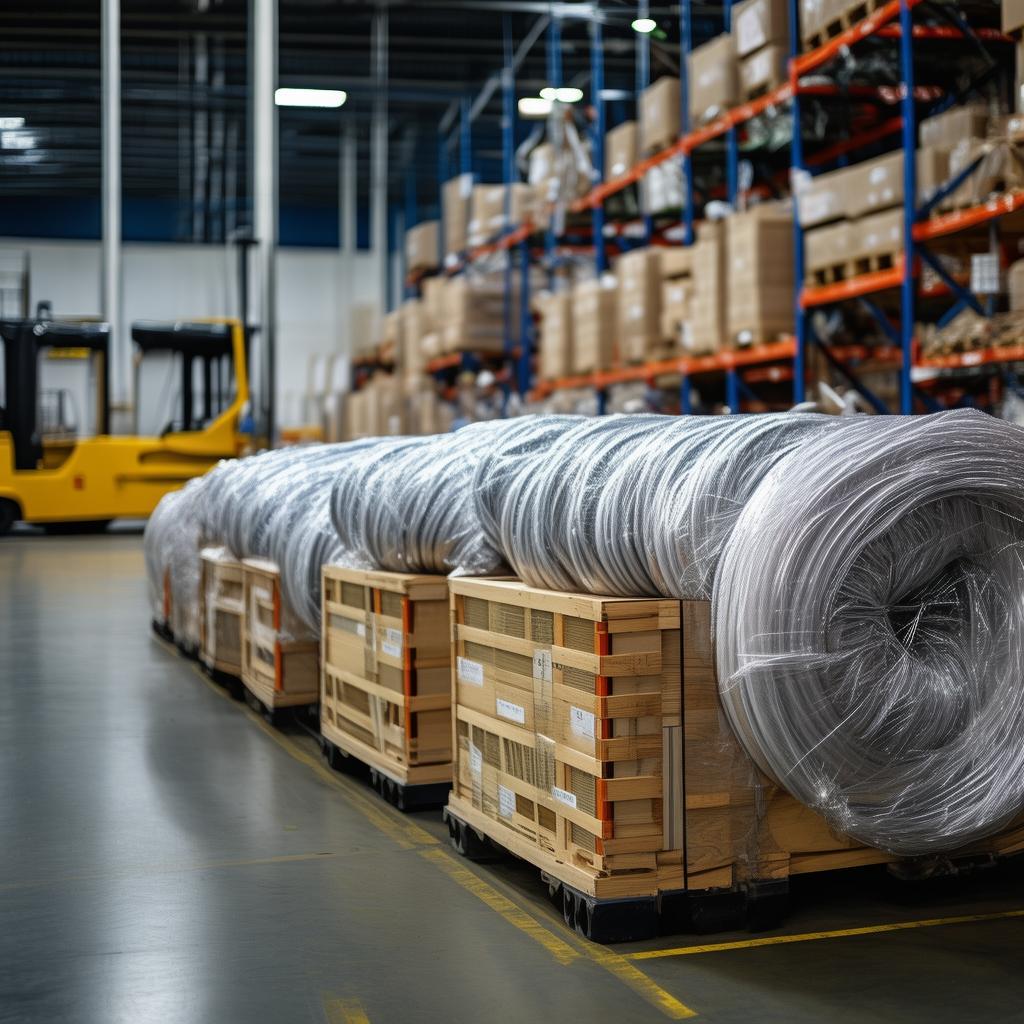

- Global Logistics: Warehouses in three continents ensure rapid delivery to your facility, regardless of location.
- Technical Support: Our engineering team provides application guidance, pressure drop calculations, and installation best practices.
- Competitive Pricing: Direct factory supply eliminates middlemen, offering you the best value for EN853 1SN compliant hoses.
- Environmental Responsibility: All materials are RoHS and REACH compliant, with recyclable packaging options available.
7. FAQ
Q: What is the difference between EN853 1SN and SAE 100 R1AT?
A: While both are single-wire braid hoses, EN853 1SN has slightly tighter dimensional tolerances and more stringent impulse testing requirements. EN853 1SN is the European standard, whereas SAE 100 R1AT is the American equivalent. Our hoses meet both standards for universal compatibility.
Q: Can the EN853 1SN hose be used for water or air applications?
A: Yes, it is suitable for water-glycol mixtures, compressed air (up to 10 bar), and lubricating oils. However, for pure water or steam, we recommend specialized hoses with different tube compounds.
Q: What is the shelf life of this hose?
A: Under proper storage conditions (cool, dry, away from UV light), the EN853 1SN hose maintains its performance characteristics for up to 5 years from the manufacturing date.
Q: Do you offer hose assemblies with crimped fittings?
A: Absolutely. We supply both bulk hose and pre-assembled lengths with crimped or reusable fittings in carbon steel, stainless steel, or brass. Please provide your fitting specifications for a custom quote.
Q: How does the working pressure vary with diameter?
A: The EN853 1SN standard specifies decreasing working pressure as inner diameter increases. For example, a 1/4" (DN 6) hose is rated at 250 bar, while a 1" (DN 25) hose is rated at 85 bar. Refer to our full specification table for exact values.
Q: Is this hose compatible with synthetic ester hydraulic fluids?
A: The standard nitrile inner tube is not recommended for ester-based fluids. For such applications, we offer an EN853 1SN variant with an FKM (Viton) tube. Please contact our technical team for fluid compatibility guidance.
For bulk orders, custom lengths, or technical inquiries regarding our EN853 1SN hydraulic hose range, please contact our sales team or request a quote online. We deliver worldwide with fast lead times.
