High-Performance Wire Braided Hydraulic Hose: Engineered for Demanding Applications

In the global industrial landscape, reliability under pressure is non-negotiable. Our high-pressure wire braided hydraulic hose represents the pinnacle of fluid power transmission technology, manufactured with precision in leading china wire braided high pressure hydraulic hose factories. Designed to withstand extreme pressures and harsh environmental conditions, this hose is the critical link in hydraulic systems where failure is not an option. It serves as a robust, flexible, and durable solution for a vast array of industrial, mobile, and construction machinery, ensuring seamless power transfer and operational continuity.

Key Features of Our Wire Braided Hydraulic Hose

Our product is engineered with a focus on performance, safety, and longevity. Each feature is designed to meet the rigorous demands of modern hydraulic systems.

• High-Tensile Steel Wire Braiding: One or two layers of high-tensile carbon steel wire provide exceptional strength and impulse resistance, containing high internal pressures while maintaining flexibility.
• Premium Synthetic Rubber Tube: The inner tube is compounded from oil-resistant synthetic rubber (typically NBR or HNBR), ensuring compatibility with a wide range of hydraulic fluids, including petroleum-based, synthetic, and water-based fluids.
• Abrasion & Weather-Resistant Cover: The outer cover is made from tough, weather-resistant synthetic rubber (often CR or CSM), protecting the wire reinforcement from abrasion, ozone, weathering, and external damage.
• Precision Engineering: Manufactured with tight dimensional tolerances, our hoses ensure a perfect fit with standard SAE, DIN, or ISO fittings, minimizing the risk of leaks and connection failures.
• Temperature Resilience: Engineered to perform reliably across a broad temperature range, from -40°C to +100°C (-40°F to +212°F), suitable for diverse global operating environments.

Technical Specifications

Our wire braided hydraulic hose complies with international standards, including SAE J517 and DIN EN 853. The table below outlines key specifications for our standard product range.

Hose Type (SAE Standard)	Working Pressure (PSI / Bar)	Burst Pressure (Min PSI / Bar)	Inner Diameter Range (Inch / mm)	Reinforcement	Temperature Range
1SN / R1AT (1 Wire Braid)	Up to 4,250 PSI / 293 bar	17,000 PSI / 1,172 bar	1/4" to 2" (6mm to 51mm)	Single Layer High-Tensile Steel Wire	-40°C to +100°C
2SN / R2AT (2 Wire Braid)	Up to 5,750 PSI / 396 bar	23,000 PSI / 1,586 bar	1/4" to 2" (6mm to 51mm)	Two Layers High-Tensile Steel Wire	-40°C to +100°C

Note: Custom specifications, including different sizes, pressures, and material compounds, can be developed to meet specific OEM requirements.

Application Scenarios

This versatile hydraulic hose is a cornerstone component across multiple heavy-duty industries, trusted for its reliability in critical systems.

• Construction & Earthmoving: Excavators, bulldozers, loaders, and cranes for boom, arm, and track motor circuits.
• Agricultural Machinery: Tractors, combines, and harvesters for steering, lifting, and implement control systems.
• Material Handling: Forklifts, log loaders, and port machinery for lifting and tilting mechanisms.
• Industrial Machinery: Injection molding machines, presses, and machine tools where consistent high-pressure fluid power is essential.
• Mining & Forestry: Drilling rigs, hydraulic shovels, and forestry harvesters operating in the most punishing environments.

Advantages Over Standard Hoses

Choosing our wire braided hydraulic hose provides distinct operational and economic benefits that enhance system performance and reduce total cost of ownership.

• Superior Pressure & Impulse Resistance: The optimized wire braid construction handles high working pressures and pressure surges (impulses) far better than spiral or textile-reinforced hoses of similar size, extending service life.
• Excellent Flexibility & Bend Radius: Despite its strength, the hose maintains good flexibility, allowing for easier routing in tight spaces without kinking, reducing installation stress.
• Enhanced Durability: The combination of a robust cover and high-quality wire braid results in outstanding resistance to abrasion, crushing, and external damage, minimizing downtime.
• Cost-Effectiveness: For medium to high-pressure applications, wire braided hoses often provide the optimal balance of performance and cost, making them a preferred choice for a wide range of equipment.

Why Choose Our Factory?

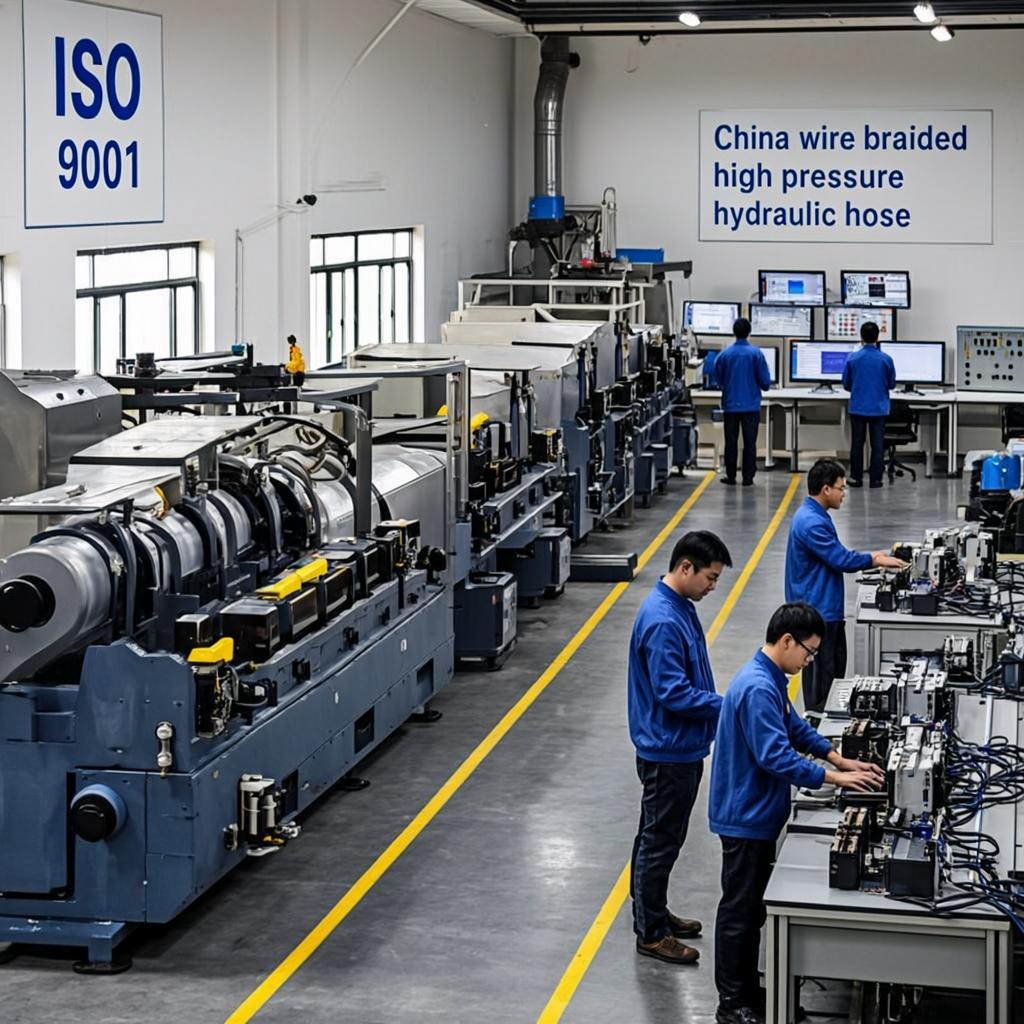

As a premier manufacturer among china wire braided high pressure hydraulic hose factories, we differentiate ourselves through a commitment to quality, innovation, and customer partnership.

• Vertical Manufacturing Integration: We control the entire production process from rubber compounding and wire drawing to braiding, curing, and final testing, ensuring consistent, traceable quality at every stage.
• Rigorous Quality Assurance: Every batch of hose undergoes stringent testing for pressure, impulse, elongation, and fluid compatibility in our in-house laboratory, exceeding SAE and ISO standards.
• OEM & Customization Expertise: We have extensive experience partnering with global OEMs to develop custom hose solutions tailored to specific application needs, including unique sizes, colors, and performance specifications.
• Global Logistics Support: With a streamlined export department and partnerships with major freight forwarders, we ensure reliable, timely delivery to ports and warehouses worldwide, supported by comprehensive documentation.
• Competitive Value Proposition: We offer the robust performance and reliability expected from top-tier hydraulic hoses, combined with the manufacturing efficiency that provides significant value without compromising on quality.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between 1-wire braid (1SN) and 2-wire braid (2SN) hoses?

A: The primary difference is pressure rating and reinforcement. A 1-wire braid hose has a single layer of steel wire and is suitable for medium-pressure applications. A 2-wire braid hose has two layers, offering a significantly higher working and burst pressure for more demanding, high-pressure systems. Selection depends on your system's maximum operating pressure.

Q2: Are your hoses compatible with all types of hydraulic fluid?

A: Our standard inner tube is compatible with most petroleum-based oils, water-glycol fluids, and emulsion-type fluids (HFA, HFB). For specific synthetic esters (HEES) or phosphate esters, we recommend consulting our technical team, as we can supply hoses with specially compounded tubes for full compatibility.

Q3: How do I ensure I'm ordering the correct hose assembly?

A: For the most reliable result, provide us with the required hose specification (SAE type, inner diameter, length), the fitting type and thread standard (e.g., JIC 37°, BSPP, NPT), and the end connections. Our engineering team can also assist with specifications based on your equipment model or system parameters.

Q4: What certifications do your products and factory hold?

A: Our manufacturing processes and products are certified to international standards, including ISO 9001 for quality management. Our hoses are manufactured to meet SAE J517, DIN EN 853, and other relevant standards. Specific certifications like CE can be provided upon request for OEM projects.

Q5: What is your typical lead time for export orders?

A: For standard product lines, our lead time is typically 15-25 days after order confirmation, depending on order volume. We maintain strategic stock of popular sizes to expedite shipments. Custom or large OEM orders are scheduled based on project requirements, with timelines communicated transparently from the outset.
