Product Parameter

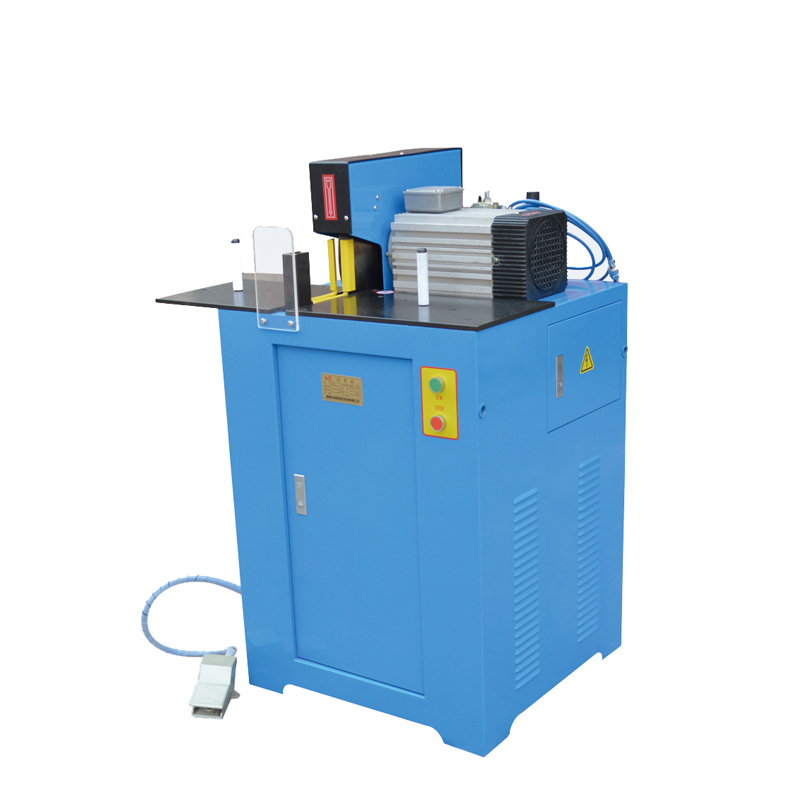

Part No. : C20

Cutting Range: 2"  4S & 3" 2S

Max ¤ 100m

Revolutions/minute: 2900r/min

Pneumatic input 0.8Mpa

Blade Measure 350mm

Dimension LxWxH 810mm*610mm*1150mm

Standard voltage : 380V/50Hz

Motor power : 5.5kW

Measuring Hose Holder Optional

Feature Description

1.Simple structure, economical and applicable

2.Adjustable handle working stroke amplitude

3.Foot pedal control

4.Safety operation and high efficient

5.Adopted the dust-extraction unit

6.Low noise

Application

This model is suitable for cutting all kinds of steel wire braided hose1SN, 2SN R1,R2, R5, R4, R16, R17, 1SC, 2SC, steel wire spiraled hose R12, R13, R15, 4SP, 4SH, adding cloth hose and cotton reinforced hose range from 6mm to 51 mm (1/4”-2” ).

It is the best choice for making hose assemblies maintenance and manufacturers

Product Production Process

HYDRAULIC HOSE 1SN-6-production line-2

hose machine-production line-2
