high pressure hydraulic hose company Performance Analysis
Introduction

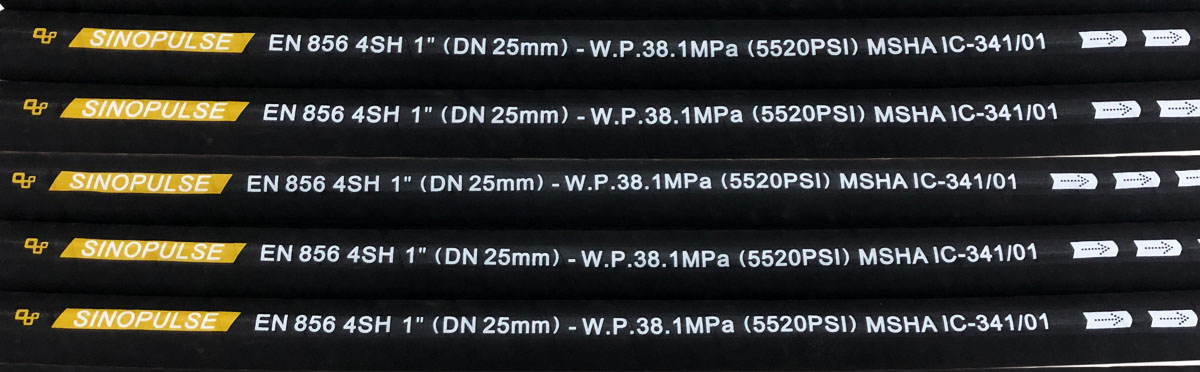

High-pressure hydraulic hose is a critical component in fluid power systems, transmitting hydraulic fluid to actuators and other components. Positioned within the broader industrial supply chain, these hoses represent a key link between power sources – such as hydraulic pumps – and end-use applications spanning construction equipment, agricultural machinery, manufacturing presses, and aerospace systems. Their performance is dictated by burst pressure, working pressure, temperature range, fluid compatibility, and abrasion resistance. A failure in a hydraulic hose can lead to significant downtime, safety hazards, and costly repairs, making reliable hose selection and maintenance paramount. This guide provides an in-depth technical overview of high-pressure hydraulic hoses, covering materials, manufacturing, performance characteristics, failure modes, and relevant industry standards. The core pain point for users lies in ensuring hose integrity under demanding operational conditions and preventing premature failure due to factors like exceeding pressure limits, fluid incompatibility, or environmental degradation.
Material Science & Manufacturing
The construction of high-pressure hydraulic hose typically involves four key layers: the inner tube, reinforcement layers, and the outer cover. The inner tube, responsible for fluid containment, is commonly composed of synthetic rubbers like Nitrile (NBR) for petroleum-based fluids, Ethylene Propylene Diene Monomer (EPDM) for phosphate ester fluids, and Fluorocarbon (FKM/Viton) for aggressive chemicals and high temperatures. NBR offers good abrasion resistance and cost-effectiveness, but limited temperature range. EPDM excels in heat and weather resistance, while FKM provides superior chemical resistance, albeit at a higher cost. Reinforcement layers, crucial for withstanding internal pressure, are typically constructed from high-tensile steel wire, spiral-wound or braided. The number of layers and wire diameter directly impact the hose’s burst pressure. Outer covers, providing environmental protection and abrasion resistance, are frequently made of Chlorinated Polyethylene (CPE) or Polyurethane (PU). CPE offers excellent ozone and weathering resistance, while PU provides superior abrasion and oil resistance.
Manufacturing processes vary depending on hose type. Braided hose is produced by interlacing high-tensile steel wires around the inner tube using a specialized braiding machine. The braid angle and wire density are critical parameters influencing burst strength. Spiral-wound hose is manufactured by continuously winding pre-formed steel wire helices around the inner tube. Precise control of wire pitch and tension is vital. Following reinforcement, the outer cover is extruded using a crosshead die, ensuring uniform thickness and adhesion. Post-extrusion, hoses undergo rigorous quality control including pressure testing to specified burst and working pressures, dimensional inspection, and visual examination for defects. The vulcanization process is crucial for curing the rubber compounds, enhancing their mechanical properties and chemical resistance. Temperature and duration of vulcanization must be precisely controlled to achieve optimal performance.
Performance & Engineering
The performance of a high-pressure hydraulic hose is fundamentally governed by its ability to withstand internal pressure without failure. Burst pressure, defined as the pressure at which the hose ruptures, is a critical design parameter. Working pressure is typically 50-75% of the burst pressure, providing a safety factor. Hose selection must consider the maximum system pressure, including pressure spikes caused by shock loading or rapid valve closure. Fatigue resistance is equally important, as hoses are subjected to cyclical pressure fluctuations during operation. This resistance is directly related to the quality of the reinforcement layers and the hose's ability to flex without experiencing localized stress concentrations. Environmental factors also play a significant role. Temperature extremes can affect the rubber compounds' elasticity and strength, while exposure to ozone, UV radiation, and corrosive fluids can accelerate degradation.
Engineering considerations include hose bend radius, which must adhere to manufacturer specifications to avoid kinking and premature failure. Excessive bending can cause localized thinning of the hose wall and stress fracturing. Proper hose routing is also essential to minimize abrasion and prevent contact with hot surfaces or sharp edges. Additionally, the compatibility of the hose materials with the hydraulic fluid is crucial. Incompatible fluids can cause swelling, softening, or cracking of the inner tube, leading to leaks and system failure. Compliance with industry standards, such as SAE J517 and EN 853, ensures that hoses meet minimum performance requirements and safety criteria. Force analysis, using finite element modeling (FEM), is often employed during the design phase to predict stress distributions and optimize hose geometry for maximum strength and durability.
Technical Specifications
| Parameter | Unit | SAE 100R2 AT | SAE 100R6 |
|---|---|---|---|
| Working Pressure | PSI | 2250 | 2000 |
| Burst Pressure | PSI | 6750 | 6000 |
| Temperature Range | °F | -40 to +212 | -40 to +175 |
| Inner Tube | Material | Synthetic Rubber (NBR) | Synthetic Rubber (NBR) |
| Reinforcement | Material | Two Steel Wire Braids | Four Steel Wire Braids |
| Outer Cover | Material | Synthetic Rubber (CPE) | Synthetic Rubber (CPE) |
Failure Mode & Maintenance
High-pressure hydraulic hoses are susceptible to several failure modes. Fatigue cracking, often initiated at areas of high stress concentration (e.g., fittings, bends), is a common failure mechanism resulting from repeated pressure cycles. This can lead to slow, progressive crack growth and eventual rupture. Abrasion, caused by contact with abrasive surfaces, can wear away the outer cover, exposing the reinforcement layers to corrosion and weakening the hose structure. Internal degradation, such as swelling or softening of the inner tube due to fluid incompatibility, can compromise the hose's pressure-holding capacity. External degradation, including ozone cracking and UV degradation, can embrittle the rubber compounds, reducing their flexibility and strength. Fitting failures, such as corrosion or loosening, can also lead to leaks and hose rupture.
Preventive maintenance is crucial for extending hose life and preventing failures. Regular visual inspections should be conducted to identify signs of damage, such as cracks, abrasions, bulges, or leaks. Hoses should be replaced if any damage is detected. Proper hose routing and support are essential to minimize stress and abrasion. Hose fittings should be regularly checked for tightness and corrosion. Fluid analysis should be performed to ensure fluid compatibility and identify contaminants that could accelerate degradation. When replacing hoses, it is critical to use hoses and fittings that are rated for the system's maximum pressure and temperature. Avoid sharp bends and ensure the hose is not subjected to excessive twisting. Implementing a regular hose replacement schedule, based on operating hours and environmental conditions, can further minimize the risk of failure.
Industry FAQ
Q: What is the difference between a braided hose and a spiral-wound hose, and when would I choose one over the other?
A: Braided hoses offer excellent flexibility and are suitable for applications with tight bend radii. They are generally more cost-effective. Spiral-wound hoses provide superior impulse (pressure surge) resistance and higher burst pressures, making them ideal for applications with significant pressure fluctuations, such as heavy equipment and hydraulic hammers. The choice depends on the specific application requirements and operating conditions.
Q: How does temperature affect the performance of a hydraulic hose?
A: Extreme temperatures can significantly impact hose performance. High temperatures can reduce the rubber's elasticity and strength, leading to premature failure. Low temperatures can cause the rubber to become brittle and less flexible. It’s critical to select a hose with a temperature range compatible with the operating environment and hydraulic fluid. Exceeding the specified temperature limits can lead to rapid degradation and failure.
Q: What are the common causes of hose leaks, and how can they be prevented?
A: Common causes include loose fittings, damaged seals, cracks in the hose wall, and fluid incompatibility. Prevention involves regular inspection of fittings for tightness, proper hose routing to avoid abrasion, using compatible fluids, and selecting hoses rated for the system pressure and temperature. Promptly address any leaks detected during inspections.
Q: What is the importance of proper hose bend radius?
A: Maintaining the recommended bend radius is crucial to prevent kinking and localized stress concentrations. Exceeding the minimum bend radius can cause the hose wall to thin, weakening it and increasing the risk of failure. Following the manufacturer’s specifications ensures the hose operates within its design limits and maintains its integrity.
Q: How can I determine the correct working pressure for my hydraulic hose application?
A: The working pressure should be determined by considering the maximum system pressure, including pressure spikes, and applying a safety factor (typically 4:1 or higher). Consult the system’s schematics and specifications to identify the highest pressure expected. Always select a hose with a working pressure rating that exceeds the maximum system pressure with an adequate margin of safety.
Conclusion
High-pressure hydraulic hoses are indispensable components in a wide range of industrial applications. Their performance and reliability are directly linked to material selection, manufacturing precision, and adherence to engineering principles. Understanding the potential failure modes and implementing a robust preventive maintenance program are essential for maximizing hose life and minimizing downtime. Choosing the correct hose specification for a specific application, considering factors like pressure, temperature, fluid compatibility, and environmental conditions, is paramount.
Future developments in hydraulic hose technology will likely focus on enhancing durability, reducing weight, and improving resistance to harsh environments. Advances in materials science, such as the development of new synthetic rubber compounds and reinforcement materials, will contribute to these improvements. Furthermore, the integration of sensor technology into hoses will enable real-time monitoring of pressure, temperature, and stress, providing valuable data for predictive maintenance and enhancing system safety.
