famous high pressure hydraulic hose manufacturer Technology Analysis

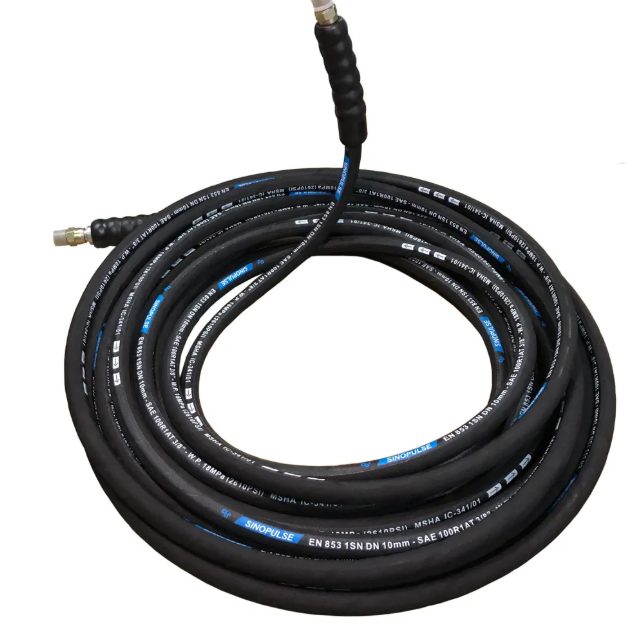

Introduction
High-pressure hydraulic hose constitutes a critical component within fluid power systems, responsible for the safe and efficient transmission of pressurized hydraulic fluid. This technical guide provides an in-depth examination of these hoses, encompassing material science, manufacturing processes, performance characteristics, failure modes, and relevant industry standards. Hydraulic hoses are vital across numerous sectors including construction, agriculture, manufacturing, and aerospace, facing demanding operational conditions. Core performance centers on burst pressure, working pressure, temperature resistance, and fluid compatibility. A primary industry pain point is premature hose failure leading to downtime, safety hazards, and costly repairs. The optimization of hose design and material selection is therefore paramount for maximizing operational longevity and ensuring system reliability. This guide aims to equip engineers, procurement managers, and maintenance personnel with the knowledge to make informed decisions regarding hydraulic hose selection, implementation, and maintenance.
Material Science & Manufacturing
The construction of high-pressure hydraulic hoses typically involves four key layers: the inner tube, reinforcement layers, the outer cover, and potentially an intermediate layer. The inner tube, in contact with the hydraulic fluid, is commonly composed of synthetic rubbers like nitrile (NBR), ethylene propylene diene monomer (EPDM), or fluorocarbon (FKM/Viton®) depending on fluid compatibility requirements. NBR offers excellent resistance to petroleum-based fluids, EPDM excels in phosphate ester fluids, and FKM provides superior resistance to aggressive chemicals and high temperatures. Reinforcement layers provide the strength necessary to withstand high pressures. These layers often consist of high-tensile steel wire (single or multiple braids), spiral-wound steel wire, or synthetic fiber braids (e.g., Aramid). Steel wire provides the highest pressure capability, while synthetic fibers offer greater flexibility. The outer cover, protecting against abrasion, weathering, and chemical attack, is typically made of synthetic rubbers like chloroprene (CR) or polyurethane (PU). Manufacturing processes vary depending on hose type. Braided hoses are manufactured by helically winding steel wire around a mandrel, followed by application of the inner tube and outer cover. Spiral-wound hoses utilize a continuous wire winding process creating a more robust and higher-pressure capacity hose. Critical parameter control during manufacturing includes wire tension, rubber vulcanization temperature and time, and dimensional accuracy. Proper curing of the rubber compounds is essential to achieve optimal mechanical properties and chemical resistance. Precise control of the reinforcement layer winding angle and tension directly impacts the hose's burst pressure and flexibility.
Performance & Engineering
Hydraulic hose performance is dictated by several key engineering principles. Burst pressure, the maximum pressure the hose can withstand before failure, is a critical safety parameter determined by reinforcement layer configuration and material strength. Working pressure, typically 50-75% of burst pressure, defines the safe operating limit. Fatigue resistance is paramount, especially in applications with cyclical pressure loading. This is assessed through repetitive pressure cycling tests. Hose flexibility, influencing routing and minimizing stress concentrations, is determined by the reinforcement layer type and hose diameter. Environmental resistance encompasses temperature extremes, ozone exposure, UV radiation, and chemical compatibility. Temperature range is crucial; exceeding specified limits can lead to rubber degradation and loss of pressure containment. Fluid compatibility must be considered to prevent swelling, softening, or cracking of the inner tube. Force analysis during installation and operation is vital. Bending radius should adhere to manufacturer specifications to avoid kinking and premature failure. Proper fitting selection and crimping are critical to ensure a secure, leak-free connection. Compliance requirements, such as those mandated by SAE (Society of Automotive Engineers) and EN (European Norms), dictate minimum performance standards and testing protocols. These standards address burst pressure, impulse testing, and dimensional accuracy. The design of the hose assembly, including end fittings, must be holistically considered to achieve optimal performance and safety.
Technical Specifications
| Parameter | SAE 100R1AT | SAE 100R2AT | DIN EN 853 1SN | DIN EN 857 2SN |
|---|---|---|---|---|
| Working Pressure (PSI) | 600 | 1200 | 315 | 630 |
| Burst Pressure (PSI) | 2400 | 4800 | 1260 | 2520 |
| Temperature Range (°F) | -40 to 212 | -40 to 212 | -40 to 212 | -40 to 212 |
| Inner Tube | NBR | NBR | NBR | NBR |
| Reinforcement | Single Steel Wire Braid | Double Steel Wire Braid | Single Steel Wire Spiral | Double Steel Wire Spiral |
| Outer Cover | CR | CR | CR | CR |
Failure Mode & Maintenance
Common failure modes in hydraulic hoses include burst failure due to exceeding pressure limits, fatigue cracking from cyclical loading, abrasion damage from external contact, and degradation from fluid incompatibility or environmental exposure. Burst failures typically originate at weaknesses in the hose wall, such as damaged reinforcement layers or defects in the rubber compounds. Fatigue cracking initiates at stress concentrations, often near fittings or bends, and propagates over time under repeated pressure cycles. Abrasion can compromise the outer cover, exposing the reinforcement layers to corrosion and ultimately leading to failure. Chemical degradation causes the rubber compounds to swell, soften, or crack, reducing their pressure containment capability. Oxidation, particularly in high-temperature environments, can embrittle the rubber, leading to premature failure. Effective maintenance practices include regular visual inspections for signs of wear, abrasion, or cracking. Pressure testing should be performed periodically to verify hose integrity. Proper routing and support are crucial to minimize bending stress and prevent abrasion. Fluid compatibility should be verified before use. Damaged hoses should be replaced immediately. Crimping procedures should be inspected regularly to ensure proper fitting attachment. Storage of hoses should be in a cool, dry, dark environment to prevent degradation. Regular cleaning to remove contaminants will prolong service life.
Industry FAQ
Q: What is the significance of impulse testing in hydraulic hose evaluation?
A: Impulse testing simulates the pulsating pressure loads encountered in real-world hydraulic systems. It assesses the hose's ability to withstand repeated pressure surges without fatigue failure. A higher impulse rating indicates greater durability in dynamically loaded applications.
Q: How does hose layline marking aid in traceability and maintenance?
A: Layline markings provide critical information about the hose manufacturer, production date, hose type, and working pressure. This information facilitates traceability for quality control purposes and assists in identifying the correct replacement hose during maintenance.
Q: What are the key considerations when selecting fittings for high-pressure hydraulic hoses?
A: Fittings must be compatible with the hose type, pressure rating, and fluid being conveyed. Material compatibility (e.g., steel, stainless steel, brass) is crucial to prevent corrosion. Proper crimping is essential to ensure a secure and leak-free connection. The fitting’s thread type must also match the port on the hydraulic component.
Q: What is the role of skew angle in spiral hose construction, and how does it affect performance?
A: The skew angle refers to the angle of the steel wire winding in spiral hoses. A smaller skew angle generally results in higher pressure capacity and improved kink resistance, while a larger skew angle provides greater flexibility. Precise control of the skew angle is critical for consistent hose performance.
Q: How do synthetic fiber reinforcement layers compare to steel wire reinforcement in hydraulic hoses?
A: Steel wire reinforcement offers higher pressure capacity and superior abrasion resistance but is less flexible and heavier than synthetic fiber reinforcement (e.g., Aramid). Synthetic fibers provide greater flexibility, reduced weight, and improved resistance to corrosion, making them suitable for applications where flexibility is paramount.
Conclusion
The selection and implementation of high-pressure hydraulic hoses require a comprehensive understanding of material science, manufacturing processes, and performance characteristics. Proper consideration of factors such as pressure requirements, fluid compatibility, temperature range, and environmental conditions is crucial for maximizing hose longevity and ensuring system reliability. Employing appropriate maintenance practices, including regular inspections, pressure testing, and proper routing, is essential for preventing premature failures and maintaining operational safety.
Future advancements in hydraulic hose technology are likely to focus on the development of lighter-weight materials, improved chemical resistance, and enhanced monitoring capabilities. The integration of sensor technologies within hoses can provide real-time data on pressure, temperature, and hose condition, enabling proactive maintenance and preventing catastrophic failures. Continuing research and development will be vital for addressing the evolving demands of increasingly complex hydraulic systems.
