Comprehensive Guide to the Hydraulic Hose Manufacturing Process and Quality Control

Understanding the Hydraulic Hose Manufacturing Process

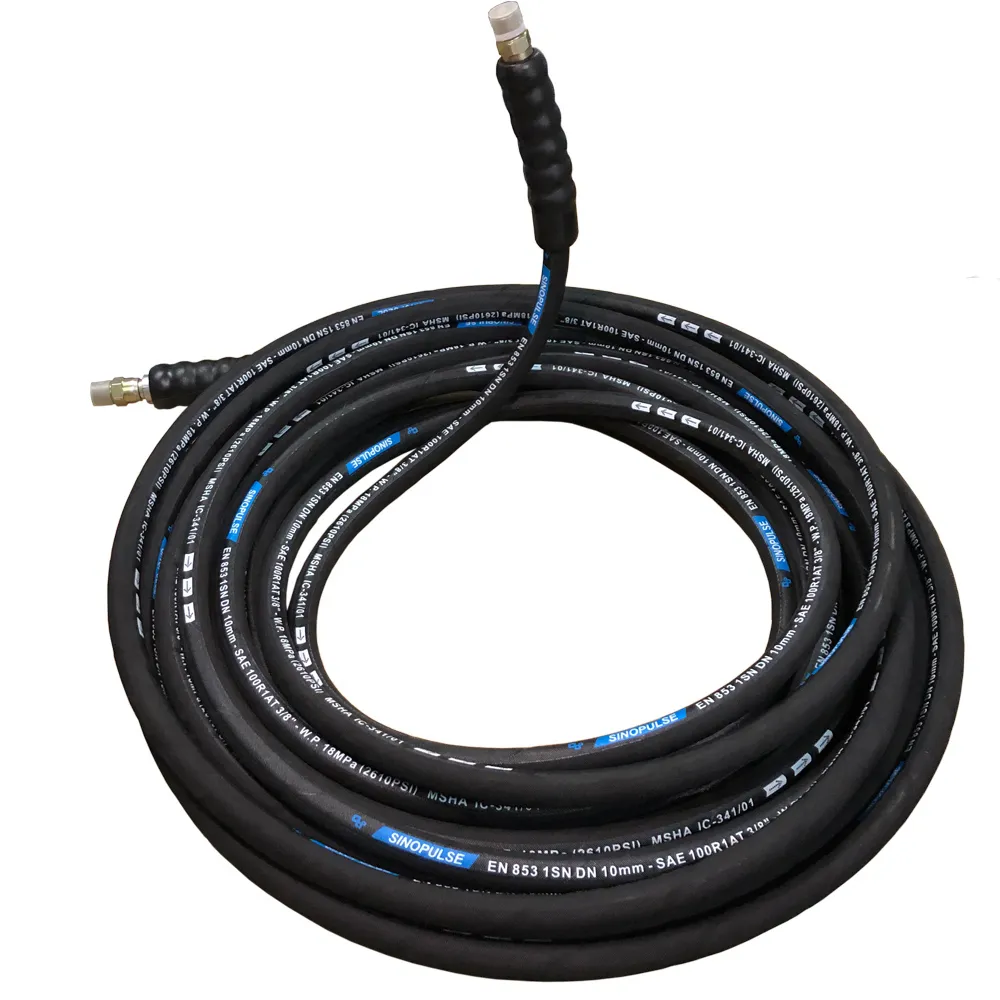

Hydraulic hoses are essential components in numerous industries, powering everything from construction equipment to agricultural machinery. The quality and reliability of these hoses are paramount, and understanding the hydraulic hose manufacturing process is crucial for both manufacturers and end-users. This article delves into the intricacies of hose production, outlining the key steps and considerations involved in creating high-performance hydraulic hoses. We’ll explore each stage, from material selection to final testing, ensuring a comprehensive understanding of how these vital components are made.

Raw Material Selection and Preparation

The foundation of a quality hydraulic hose lies in the selection of appropriate raw materials. Typically, hoses are constructed from a combination of rubber (synthetic or natural), reinforcing layers (steel wire or textile braid), and cover materials. The rubber compound is carefully formulated to resist abrasion, chemicals, and extreme temperatures. Steel wire provides high-pressure resistance, while textile braids offer flexibility. The preparation of these materials involves cleaning, pre-treating, and sometimes compounding rubber to achieve desired properties. The type of rubber and reinforcement used dictates the hose’s application and performance characteristics. Hydhoses.com prioritizes high-grade materials for superior hose durability.

Key Considerations: Material compatibility with the hydraulic fluid, operating temperature range, and pressure requirements are vital during selection.

Inner Tube Extrusion

Once materials are prepped, the inner tube, which contains the hydraulic fluid, is formed through an extrusion process. Rubber compound is forced through a die, creating a seamless tube with the desired inner diameter and wall thickness. Maintaining precise dimensions during extrusion is crucial for ensuring proper fluid flow and preventing leaks. This process requires careful control of temperature, pressure, and extrusion speed. Automated systems and quality control checks are employed throughout to guarantee consistent tube quality. The extruded tube then undergoes curing – a vulcanization process that strengthens and stabilizes the rubber.

Benefits of Extrusion:

• Seamless tube construction minimizes leak points

• Precise dimensional control ensures consistent performance

• Automated process allows for high-volume production

Reinforcement Layer Application: The Core of Strength

The reinforcement layer is what gives a hydraulic hose its ability to withstand high pressures. This layer is applied over the inner tube, typically using one of two methods: spiral winding or braiding. Spiral winding involves wrapping high-tensile steel wire helically around the tube, providing excellent burst strength. Braiding, on the other hand, uses textile or steel fibers interwoven to create a flexible yet strong structure. The number of layers and type of material dictate the hose's working pressure. The application process must ensure uniform coverage and proper adhesion to the inner tube. Hydraulic hose manufacturing at Hydhoses.com uses both methods to cater to diverse industrial needs.

Cover Extrusion and Finishing

The final step in the manufacturing process is applying the outer cover, which protects the reinforcement layer from abrasion, chemicals, and environmental factors. This is typically achieved through another extrusion process, using a rubber compound specifically chosen for its protective properties. After extrusion, the hose undergoes finishing operations such as cutting to length, applying fittings (if required), and marking with identification information. Surface treatments like abrasion-resistant coatings may also be applied. Finally, each hose undergoes rigorous testing – including pressure testing, impulse testing, and bend testing – to ensure it meets stringent quality standards.

Quality Control and Testing Procedures

Throughout the hydraulic hose manufacturing process, quality control is paramount. In-process inspections verify dimensions, material consistency, and adhesion. Final testing includes hydrostatic pressure tests (to verify burst pressure), impulse tests (to assess fatigue resistance), and bend radius tests (to ensure flexibility). These tests simulate real-world operating conditions and identify potential defects. Documentation of test results is crucial for traceability and accountability. Hydhoses.com adheres to ISO standards for quality management, guaranteeing reliable and consistent products.

Conclusion: Ensuring Reliability through Precision Manufacturing

The production of hydraulic hoses is a complex process requiring precision, expertise, and stringent quality control. Understanding each stage, from raw material selection to final testing, is essential for ensuring the reliability and performance of these critical components. By choosing a reputable manufacturer like Hydhoses.com, you can be confident in the quality and durability of your hydraulic hose solutions.
